Wireline Valve Consumables
There are many different accessories available for all TIS Wireline Valves

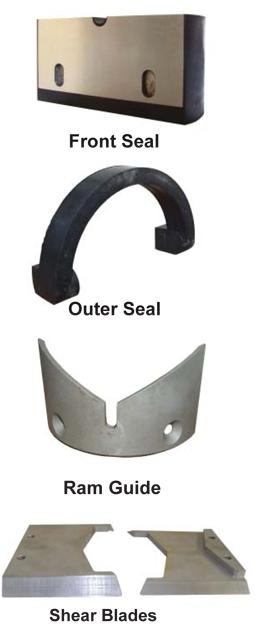

Front Seal
| Description | Part Number |
|---|---|
| 3" Ram Front Seal 0.125" Diameter Wire | 0002-00001-C |
| 3" Ram Front Seal 3/16" Diameter Wire | 0002-00007-C |
| 3" Ram Front Seal 7/32" Diameter Wire | 0002-00008-C |
| 3" Ram Front Seal 1/4" Diameter Wire | 0002-00051-C |
| 3" Ram Front Seal 5/16" Diameter Wire | 0002-00006-C |
| 4" Ram Front Seal 0.125" Diameter Wire | 0003-00004-C |
| 4" Ram Front Seal 3/16" Diameter Wire | 0003-00011-C |
| 4" Ram Front Seal 7/32" Diameter Wire | 0003-00002-C |
| 4" Ram Front Seal 1/4" Diameter Wire | 0003-00052-C |
| 4" Ram Front Seal 5/16" Diameter Wire | 0003-00003-C |
| 5-1/8" Ram Front Seal 0.125" Diameter Wire | 0004-00001-C |
| 5-1/8" Ram Front Seal 3/16" Diameter Wire | 0004-00004-C |
| 5-1/8" Ram Front Seal 7/32" Diameter Wire | 0004-00005-C |
| 5-1/8" Ram Front Seal 1/4" Diameter Wire | 0004-00086-C |
| 5-1/8" Ram Front Seal 5/16" Diameter Wire | 0004-00003-C |
| 6-5/8" Ram Front Seal 0.125" Diameter Wire | 0009-00002-C |
| 6-5/8" Ram Front Seal 3/16" Diameter Wire | 0009-00003-C |
| 6-5/8" Ram Front Seal 7/32" Diameter Wire | 0009-00004-C |
| 6-5/8" Ram Front Seal 1/4" Diameter Wire | 0009-00057-C |
| 6-5/8" Ram Front Seal 5/16" Diameter Wire | 0009-00005-C |
Outer Seal
| Description | Part Number |
|---|---|
| 3" Ram Outer Seal | 0002-00002-C |
| 4" Ram Outer Seal | 0003-00005-C |
| 5-1/8" Ram Outer Seal | 0004-00002-C |
| 6-5/8" Ram Outer Seal | 0009-00001-C |
Ram Guide
| Description | Part Number |
|---|---|
| 3" Ram Front Seal 0.125" Diameter Wire | 0002-00004-C |
| 3" Ram Front Seal 3/16" Diameter Wire | 0002-00084-C |
| 3" Ram Front Seal 7/32" Diameter Wire | 0002-00090-C |
| 3" Ram Front Seal 1/4" Diameter Wire | 0002-00076-C |
| 3" Ram Front Seal 5/16" Diameter Wire | 0002-00091-C |
| 4" Ram Front Seal 0.125" Diameter Wire | 0003-00009-C |
| 4" Ram Front Seal 3/16" Diameter Wire | 0003-00013-C |
| 4" Ram Front Seal 7/32" Diameter Wire | 0003-00012-C |
| 4" Ram Front Seal 1/4" Diameter Wire | 0003-00053-C |
| 4" Ram Front Seal 5/16" Diameter Wire | 0003-00014-C |
| 5-1/8" Ram Front Seal 0.125" Diameter Wire | 0004-00008-C |
| 5-1/8" Ram Front Seal 3/16" Diameter Wire | 0004-00045-C |
| 5-1/8" Ram Front Seal 7/32" Diameter Wire | 0004-00046-C |
| 5-1/8" Ram Front Seal 1/4" Diameter Wire | 0004-00087-C |
| 5-1/8" Ram Front Seal 5/16" Diameter Wire | 0004-00047-C |
| 6-5/8" Ram Front Seal 0.125" Diameter Wire | 0009-00008-C |
| 6-5/8" Ram Front Seal 3/16" Diameter Wire | 0009-00013-C |
| 6-5/8" Ram Front Seal 7/32" Diameter Wire | 0009-00014-C |
| 6-5/8" Ram Front Seal 1/4" Diameter Wire | 0009-00058-C |
| 6-5/8" Ram Front Seal 5/16" Diameter Wire | 0009-00015-C |
Shear Blades
| Description | Part Number |
|---|---|
| 3" Ram Top Blade | 0002-00085-C |
| 3" Ram Bottom Blade | 0002-00086-C |
| 4" Ram Top Blade | 0003-00046-C |
| 4" Ram Bottom Blade | 0003-00047-C |
| 5-1/8" Ram Top Blade | 0004-00038-C |
| 5-1/8" Ram Bottom Blade | 0004-00037-C |
| 6-5/8" Ram Top Blade | 0009-00040-C |
| 6-5/8" Ram Bottom Blade | 0009-00041-C |
