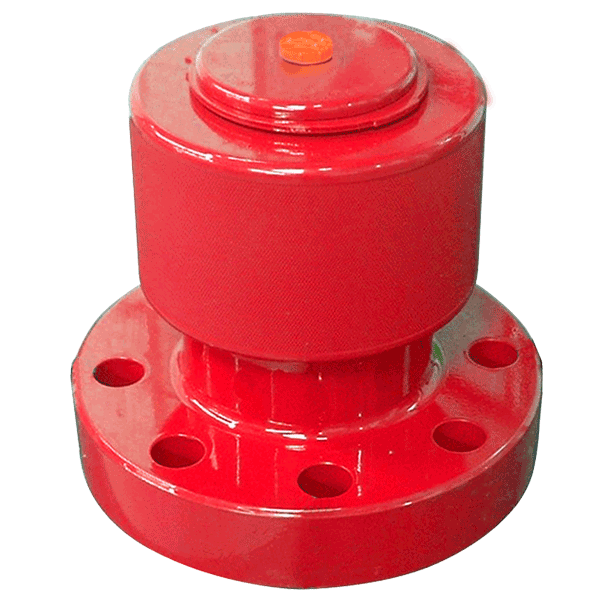

Wellhead Flange Adapters
TIS Wellhead flange adapters are designed to be installed on to API wellheads and provide a transition between the xmas tree and the well intervention pressure control equipment. It is important to note that, the wellhead flange adapter should always be compatible with the through bore of the wellhead it is being installed on to.
Options
The TIS wellhead flange adapter range is available with the following options :
- Choice of through bores from 2 1/16” ID upwards
- Choice of material: alloy steel, stainless steel and nickel alloys
- Inlays on ring grooves
- Choice of working pressures from 2,000 Psi to 15,000 Psi
- Standard or sour service
- Choice of fluid and temperature rating
- Choice of API flanged connections
- Choice of quick union connections
- Choice of internal lifting thread
- Bleed port
Technical Features
TIS API flange adapters are manufactured from weld repairable material
Wellhead Flanges : 5,000 & 10,000 psi
| API Flange | Ring Groove | Working Pressure | Quick Union | Part Number |
|---|---|---|---|---|
| 3-1/8" | API R35 | 5,000 psi | 5-1/2" 4x2 'B' Type | 0075-00009-TIS |
| 3-1/8" | API R35 | 5,000 psi | 5" - 4Thd 'O' Type | 0075-00034-TIS |
| 3-1/16" | API BX154 | 10,000 psi | 6-5/16" - 4Thd 'B' Type | 0075-00003-TIS |
| 3-1/16" | API BX154 | 10,000 psi | 5-3/4" - 4Thd 'O' Type | 0075-00021-TIS |
| 4-1/16" | API R39 | 5,000 psi | 7" - 5Thd 'B' Type | 0075-00008-TIS |
| 4-1/16" | API R39 | 5,000 psi | 6-1/2" - 4Thd 'O' Type | 0075-00035-TIS |
| 4-1/16" | API BX155 | 10,000 psi | 8-1/4" - 4x2 'B' Type (10k) | 0075-00037-TIS |
| 4-1/16" | API BX155 | 10,000 psi | 8-3/8" - 4Thd 'O' Type | 0075-00038-TIS |
| 5-1/8" | API R44 | 5,000 psi | 8-1/4" - 4x2 'B' Type (5k) | 0075-00039-TIS |
| 5-1/8" | API R44 | 5,000 psi | 8-1/4" - 4Thd 'O' Type | 0075-00040-TIS |
| 5-1/8" | API BX169 | 10,000 psi | 8-7/8" - 4x2 'B' Type (10k) | 0075-00041-TIS |
| 5-1/8" | API BX169 | 10,000 psi | 9" - 4Thd 'O' Type | 0075-00042-TIS |
| 7-1/16" | API R46 | 5,000 psi | 9-7/8" - 4x2 'B' Type | 0075-00044-TIS |
| 7-1/16" | API R46 | 5,000 psi | 9-1/2" - 4Thd 'O' Type | 0075-00045-TIS |
| 7-1/16" | API BX156 | 10,000 psi | 13" - 4Thd 'B' Type | 0075-00043-TIS |
| 7-1/16" | API BX156 | 10,000 psi | 11-1/2" - 4Thd 'O' Type | 0075-00020-TIS |
