Integral Lubricators

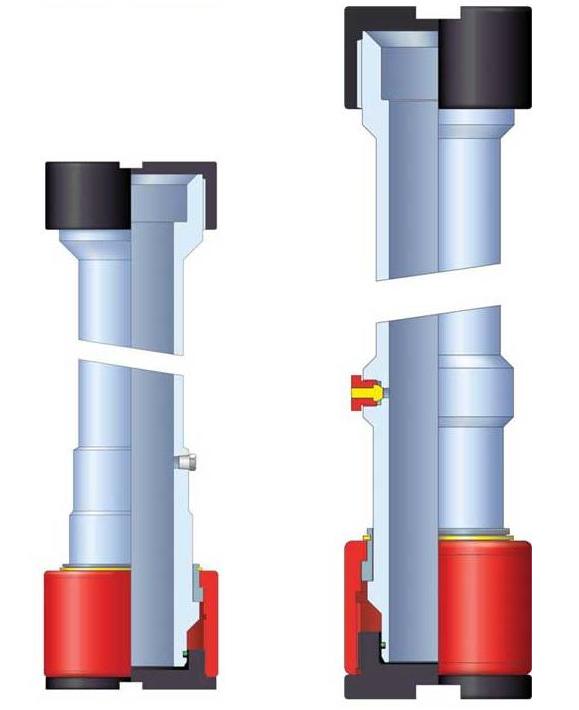

TIS Integral Lubricators are available in 5,000 & 10,000 psi with NPT Port or 15,000 psi with high pressure port
Integral Lubricators : 5,000 & 10,000 psi with NPT Port
| Thro’ Bore | Working Pressure | Quick Union | Length | Part Number |
|---|---|---|---|---|
| 3.00” | 5,000 psi | 5-1/2”-4x2 ‘B’ Type | 6 Feet | 0037-00051-TIS |
| 3.00” | 5,000 psi | 5-1/2”-4x2 ‘B’ Type | 8 Feet | 0037-00052-TIS |
| 3.00” | 5,000 psi | 5-1/2”-4x2 ‘B’ Type | 10 Feet | 0037-00053 |
| 3.00” | 5,000 psi | 5”-4Thd ‘O’ Type | 6 Feet | 0037-00049-TIS |
| 3.00” | 5,000 psi | 5”-4Thd ‘O’ Type | 8 Feet | 0037-00021-TIS |
| 3.00” | 5,000 psi | 5”-4Thd ‘O’ Type | 10 Feet | 0037-00050-TIS |
| 3.00” | 10,000 psi | 6-5/16”-4Thd ‘B’ Type | 6 Feet | 0037-00054-TIS |
| 3.00” | 10,000 psi | 6-5/16”-4Thd ‘B’ Type | 8 Feet | 0037-00055-TIS |
| 3.00” | 10,000 psi | 6-5/16”-4Thd ‘B’ Type | 10 Feet | 0037-00056-TIS |
| 3.00” | 10,000 psi | 5-3/4”-4Thd ‘O’ Type | 6 Feet | 0037-00057-TIS |
| 3.00” | 10,000 psi | 5-3/4”-4Thd ‘O’ Type | 8 Feet | 0037-00058-TIS |
| 3.00” | 10,000 psi | 5-3/4”-4Thd ‘O’ Type | 10 Feet | 0037-00059-TIS |
| 4.00” | 5,000 psi | 7”-5Thd ‘B’ Type | 6 Feet | 0016-00031-TIS |
| 4.00” | 5,000 psi | 7”-5Thd ‘B’ Type | 8 Feet | 0016-00032-TIS |
| 4.00” | 5,000 psi | 7”-5Thd ‘B’ Type | 10 Feet | 0016-00033-TIS |
| 4.00” | 5,000 psi | 6-1/2”-4Thd ‘O’Type | 6 Feet | 0016-00034-TIS |
| 4.00” | 5,000 psi | 6-1/2”-4Thd ‘O’Type | 8 Feet | 0016-00035-TIS |
| 4.00” | 5,000 psi | 6-1/2”-4Thd ‘O’Type | 10 Feet | 0016-00036-TIS |
| 4.00” | 10,000 psi | 8-1/4”-4x2 ‘B’ Type (10k) | 6 Feet | 0016-00037-TIS |
| 4.00” | 10,000 psi | 8-1/4”-4x2 ‘B’ Type (10k) | 8 Feet | 0016-00038-TIS |
| 4.00” | 10,000 psi | 8-1/4”-4x2 ‘B’ Type (10k) | 10 Feet | 0016-00039-TIS |
| 4.00” | 10,000 psi | 8-3/8”-4Thd ‘O’ Type | 6 Feet | 0016-00040-TIS |
| 4.00” | 10,000 psi | 8-3/8”-4Thd ‘O’ Type | 8 Feet | 0016-00041-TIS |
| 4.00” | 10,000 psi | 8-3/8”-4Thd ‘O’ Type | 10 Feet | 0016-00042-TIS |
| 5.12” | 5,000 psi | 8-1/4”-4x2 ‘B’ Type (5k) | 6 Feet | 0039-00042-TIS |
| 5.12” | 5,000 psi | 8-1/4”-4x2 ‘B’ Type (5k) | 8 Feet | 0039-00043-TIS |
| 5.12” | 5,000 psi | 8-1/4”-4x2 ‘B’ Type (5k) | 10 Feet | 0039-00044-TIS |
| 5.12” | 5,000 psi | 8-1/4”-4Thd ‘O’ Type | 6 Feet | 0039-00039-TIS |
| 5.12” | 5,000 psi | 8-1/4”-4Thd ‘O’ Type | 8 Feet | 0039-00040-TIS |
| 5.12” | 5,000 psi | 8-1/4”-4Thd ‘O’ Type | 10 Feet | 0039-00041-TIS |
| 5.12” | 10,000 psi | 8-7/8”-4x2 ‘B’ Type | 6 Feet | 0039-00036-TIS |
| 5.12” | 10,000 psi | 8-7/8”-4x2 ‘B’ Type | 8 Feet | 0039-00037-TIS |
| 5.12” | 10,000 psi | 8-7/8”-4x2 ‘B’ Type | 10 Feet | 0039-00038-TIS |
| 5.12” | 10,000 psi | 9”-4Thd ‘O’ Type | 6 Feet | 0039-00035-TIS |
| 5.12” | 10,000 psi | 9”-4Thd ‘O’ Type | 8 Feet | 0039-00006-TIS |
| 5.12” | 10,000 psi | 9”-4Thd ‘O’ Type | 10 Feet | 0039-00001-TIS |
| 6-5.8” | 5,000 psi | 9-7/8”-4x2 ‘B’ Type | 6 Feet | 0038-00026-TIS |
| 6-5.8” | 5,000 psi | 9-7/8”-4x2 ‘B’ Type | 8 Feet | 0038-00027-TIS |
| 6-5.8” | 5,000 psi | 9-7/8”-4x2 ‘B’ Type | 10 Feet | 0038-00028-TIS |
| 6-5.8” | 5,000 psi | 9-1/2”-4Thd ‘O’ Type | 6 Feet | 0038-00029-TIS |
| 6-5.8” | 5,000 psi | 9-1/2”-4Thd ‘O’ Type | 8 Feet | 0038-00030-TIS |
| 6-5.8” | 5,000 psi | 9-1/2”-4Thd ‘O’ Type | 10 Feet | 0038-00031-TIS |
| 6-5.8” | 10,000 psi | 13”-4Thd ‘B’ Type | 6 Feet | 0038-00032-TIS |
| 6-5.8” | 10,000 psi | 13”-4Thd ‘B’ Type | 8 Feet | 0038-00033-TIS |
| 6-5.8” | 10,000 psi | 13”-4Thd ‘B’ Type | 10 Feet | 0038-00034-TIS |
| 6-5.8” | 10,000 psi | 11-1/2”-4Thd ‘O’ Type | 6 Feet | 0038-00035-TIS |
| 6-5.8” | 10,000 psi | 11-1/2”-4Thd ‘O’ Type | 8 Feet | 0038-00036-TIS |
| 6-5.8” | 10,000 psi | 11-1/2”-4Thd ‘O’ Type | 10 Feet | 0038-00037-TIS |
Integral Lubricators : 15,000 psi with high pressure port
| Thro’ Bore | Quick Union | Length | Part Number |
|---|---|---|---|
| 2-9/16” | 6-5/16”-4Thd ‘B’ Type | 6 Feet | 0036-00001-TIS |
| 2-9/16” | 6-5/16”-4Thd ‘B’ Type | 8 Feet | 0036-00002-TIS |
| 2-9/16” | 6-5/16”-4Thd ‘B’ Type | 10 Feet | 0036-00003-TIS |
| 2-9/16” | 6-1/4”-4Thd ‘O’ Type | 6 Feet | 0036-00004-TIS |
| 2-9/16” | 6-1/4”-4Thd ‘O’ Type | 8 Feet | 0036-00005-TIS |
| 2-9/16” | 6-1/4”-4Thd ‘O’ Type | 10 Feet | 0036-00006-TIS |
| 3.00” | 7”-5Thd ‘B’ Type | 8 Feet | 0037-00060-TIS |
| 3.00” | 7”-5Thd ‘B’ Type | 8 Feet | 0036-00061-TIS |
| 3.00” | 7”-5Thd ‘B’ Type | 10 Feet | 0036-00062-TIS |
| 3.00” | 7-1/2”-4Thd ‘O’ Type | 6 Feet | 0036-00063-TIS |
| 3.00” | 7-1/2”-4Thd ‘O’ Type | 8 Feet | 0036-00064-TIS |
| 3.00” | 7-1/2”-4Thd ‘O’ Type | 10 Feet | 0036-00065-TIS |
| 4.00” | 9-1/2”-4Thd ‘O’ Type | 6 Feet | 0016-00043-TIS |
| 4.00” | 9-1/2”-4Thd ‘O’ Type | 8 Feet | 0016-00044-TIS |
| 4.00” | 9-1/2”-4Thd ‘O’ Type | 10 Feet | 0016-00045-TIS |
| 5-12” | 12-1/4”-4Thd ‘O’ Type | 6 Feet | 0039-00045-TIS |
| 5.12” | 12-1/4”-4Thd ‘O’ Type | 8 Feet | 0039-00046-TIS |
| 5.12” | 12-1/4”-4Thd ‘O’ Type | 10 Feet | 0039-00047-TIS |
